Biometric Hardware

Fingerprint Devices

PC – based device: EKKLAVYA BIO

Our biometrically secured access software at all entry and exit points ensures high security with convenience, by providing a method of foolproof identification that cannot be lost, stolen, shared or forgotten.

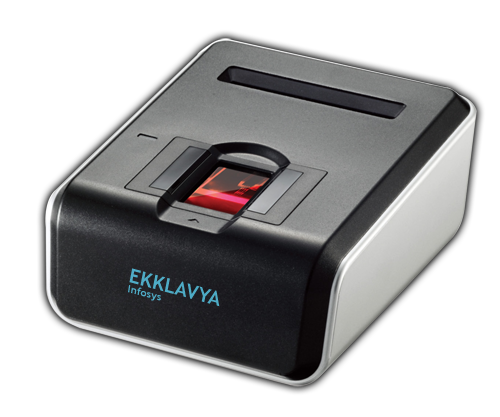

Fingerprint Devices

PC – based device: EKKLAVYA BIO

  • Our fingerprint device works on Windows as well as Linux, and is most superior in quality and performance, and a resolution that is even higher than that specified by the FBI, USA!!
  • Can be integrated with any application
  • Currently used in our standard packages for logins, data security, access control solutions, OEM for 3rd party integration

Stand-Alone Device

Advanced technology with multiple choices Ekklavya terminal is Ekklavya’s latest Linux-based fingerprint biometric terminal, which Combines a graphic color screen with technologically advanced features for all your time & attendance and access control applications.

Ekklavya is compact in size and attractively designed, and is also equipped with a built in camera and a speaker for generating various sound effects such as alert notifications, report confirmation/ rejection and other actions and events indications. Ekklavya can be linked to a variety of networks in your organization to complemenEkklavya complement the management information systems that are already in place.

  • Fast matching time
  • Professional design
  • Recently cut out of an illustrated magazine
  • Intuitive user interface
  • Accurate and fast fingerprint algorithm
  • Easy adaptation to collect processes through parameter settings
  • Memory can be dynamically distributed and extended accoeding to staff quantity
  • Provides accurare, reliable data
  • Experienced technical staff support
  • High reputation

4-4-2 Device

These terminals capture all 10 fingers in 3 swaps

  • AFIS technology available
  • Can be integrated with any application. Currently available with Voter Registrations, Prison Management, Citizen and Civil employee registrations, etc.

Face Reader

The most sophisticated recognition solution – AT A GLANCE!

Ekkalvya’s facial recognition terminal, EKK – Face, is an embedded face recognition system with leading “Dual Sensor” Face Recognition Algorithm, which is applicable for time attendance and access control applications. The EKK – Face is a time and attendance and access control terminals that uses face recognition technology to instantly identify users. The EKK – Face provides a touch – free, hygienic alternative or badges. Users simply look at the device and within seconds they are identified and either clocked in for work or granted secure access.

  • Accurate
  • Dependable – Successfully deployed in challenging real time environments
  • Trackable – The only biometric method where the transaction records can be visually confirmed
  • Contactless – Non- intrusive, a non-contact verification process
  • User-friendly
  • Reliable performance
  • Multifactor authentication
  • Accurate and fast Identification
  • Contactless authentication for the ultimate in hygienic conditions
  • Voice prompt
  • The system can work in different light conditions, even in the dark
  • Incident trackable for security with photo captured by a camera

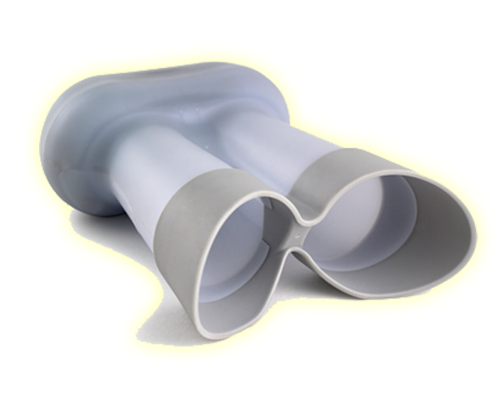

Iris Scanner Device

Scanner is ready-to-use and portable dual-eye iris camera Come with an extensive SDK for software developers or value added resellers to develop application systems.

  • Capture Mode : Auto capture with built-in quality check (using NIST IQCE and ISO 29794-6 quality metrics), Simultaneous capture: two eyes, Evaluation rate: ≥ 10 fps, Exposure time: ≤ 16.7ms)
  • Key Functionalities : On-board Template Generation, 1:1 and 1:N Template Matching On-board PKI security functions
  • Viewfinder : Capture distance: 137.5 - 152.5 mm (5.4 - 6.0 inches) Capture volume: 33 x 24 x 15 mm
  • Image Format : ISO 19794-6, full support of K1, K2, K3 and K7 Max 640 x 480 pixels, 8-bit grayscale
  • Sensor : Resolution: VGA, Scan type: Progressive, SNR: ≥ 37 dB
  • Dimensions : Without Goggle : 124 x 63.2 x 42.5 mm (4.9 x 2.49 x 1.68 inches) With Goggle: 200 x 145 x 72 mm (7.9 x 5.7 x 2.8 inches)
  • Power : Single USB Bus Powered (DC + 5V ± 5%) (Max power consumption = 500 mA)
  • Illumination : Infrared LED
  • Environmental : -20 ℃ to + 60 ℃ (Storage); 0 ℃ to +50 ℃ (Operating); 0% to 90% humidity (non-condensing)
  • Usage : Indoors; Outdoors (avoid direct sunlight and bright reflections)
  • Compliance & Certificates : IEC 62471:2006-07 (eye safety), RoHS, FCC -Class B, IP54, STQC
  • Resolution : Spatial: ≥ 60% @ 4.0 Lp/mm, Pixel: ≥ 16 Pixels/mm
  • Connectivity : USB 2.0
  • Product package : Encased
  • Security : PKI (2048-bit) and AES (256-bit); X509 Certificate, PFX/PKCS#12 Certificate, RSA Key pair generated on-board
  • Host OS : Windows and Linux
Iris Scanner Device
